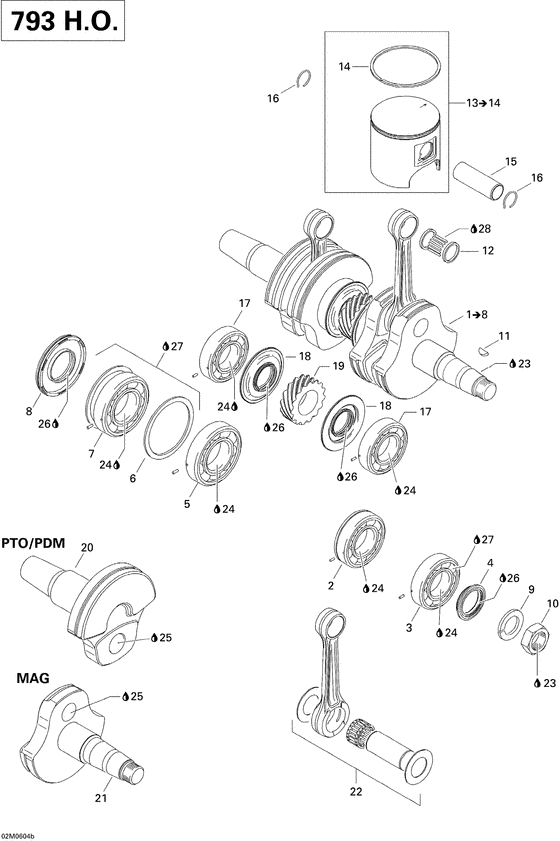

01- crankshaft and pistons 793ho для Bombardier GTX
- Год
- 2006
- Регион продаж
- General
- Модель
- GTX 600 HO
Запутались с подбором запчастей?
Запутались с подбором запчастей?
| Наименование | OEM номер | Цена | |||
|---|---|---|---|---|---|
|
1
|
1
420889675
Vilebrequin *crankshaft assy
|
420889675 |
— | ||
| замена | |||||
|
1
|
1
420889677
Vilebrequin *crankshaft assy
|
420889677 |
— | ||
|
2
|
2
420832638
Ball bearing
Includes 1 to 8; |
420832638 |
— | ||
| замена | |||||
|
2
|
2
420832633 ПодшипникIncludes 1 to 8; |
420832633 |
14 046 р. |
||
|
3
|
3
420832575 Roulement bille*ball bearing |
420832575 |
7 327 р. |
||
|
4
|
4
420931792
Anneau etanche *seal-oil
|
420931792 |
— | ||
| замена | |||||
|
4
|
4
420931795 SEAL-OIL |
420931795 |
2 440 р. |
||
|
5
|
5
420832608
Roulement bille*ball bearing
|
420832608 |
— | ||
| замена | |||||
|
5
|
5
420832602 Roulement bille*ball bearing 6208 |
420832602 |
14 535 р. |
||
|
6
|
6
420926190 Rondelle *washer |
420926190 |
1 568 р. |
||
|
7
|
7
420832700
Roulement bille*ball bearing
|
420832700 |
— | ||
| замена | |||||
|
7
|
7
420832702 BALL BEARING |
420832702 |
12 459 р. |
||
|
8
|
8
420931285
Anneau etanche *seal-oil
|
420931285 |
— | ||
|
9
|
9
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
3 060 р. |
||
|
10
|
10
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
11
|
11
420246015 Clavette *key-woodruff |
420246015 |
451 р. |
||
|
12
|
12
420832428
Roul.aiguille *needle bearing
|
420832428 |
— | ||
| замена | |||||
|
12
|
12
420832445 Roul.aiguille *needle bearing |
420832445 |
4 150 р. |
||
|
13
|
13
420889456
Piston 81,87 *piston-assy 81,87
Includes 13 to 14; |
420889456 |
— | ||
| замена | |||||
|
13
|
13
420889457 Piston 81,87 *piston-assy 81,87Includes 13 to 14; |
420889457 |
28 301 р. |
||
|
14
|
14
420815360 Segment semi tr*ring semitrapez |
420815360 |
8 793 р. |
||
|
15
|
15
420916371 Axe de piston *pin-gudgeon |
420916371 |
8 912 р. |
||
|
16
|
16
420845106 Circlip piston *circlip-piston |
420845106 |
от 750 р. |
||
|
17
|
17
420832575 Roulement bille*ball bearing |
420832575 |
7 327 р. |
||
|
18
|
18
420931455 Anneau etanche *seal-oil |
420931455 |
4 883 р. |
||
|
19
|
19
420834355 Engrenage cent.*gear-central |
420834355 |
12 616 р. |
||
|
20
|
20
420819032
Vilebrequin pto*crankshaft-pto
|
420819032 |
— | ||
|
21
|
21
420819061 Vilebrequin mag*crankshaft-mag |
420819061 |
40 156 р. |
||
|
22
|
22
420684654
Ens.tige rep. *kit-rod repair pto-side
|
420684654 |
— | ||
|
22
|
22
420684653
Ens.tige rep. *kit-rod repair mag-side
|
420684653 |
— | ||
|
23
|
23
293800060 Loctite 243 *loctite-243 |
293800060 |
3 897 р. |
||
|
24
|
24
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
5 098 р. |
||
|
25
|
25
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
26
|
26
420899271 Graisse *grease |
420899271 |
10 481 р. |
||
|
27
|
27
293550021 Graisse isoflex*grease-isoflex |
293550021 |
8 774 р. |
||
|
28
|
28
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| замена | |||||
|
28
|
28
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
1 955 р. |
||
