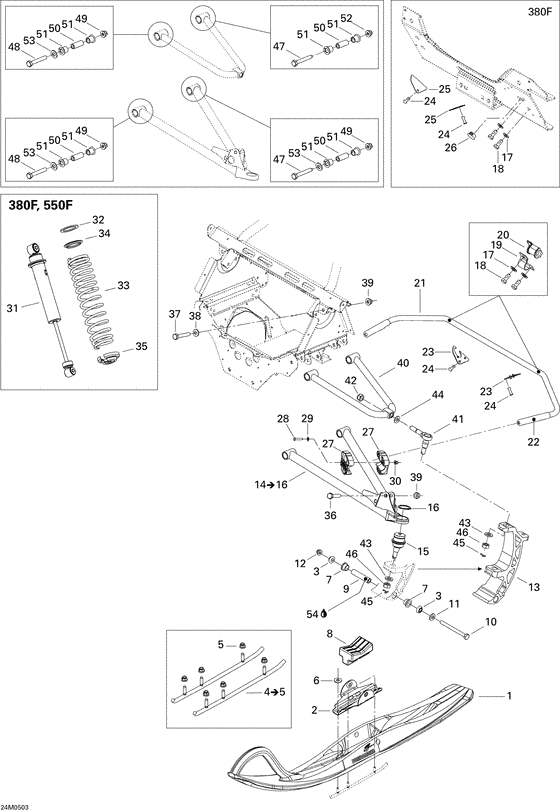

07- front suspension and ski 550f для Bombardier GTX
- Год
- 2005
- Регион продаж
- General
- Модель
- GTX 550F
Запутались с подбором запчастей?
Запутались с подбором запчастей?
| Наименование | OEM номер | Цена | |||
|---|---|---|---|---|---|
|
1
|
1
505070975
Ski plast. *ski-liner
|
505070975 |
— | ||
| замена | |||||
|
1
|
1
505072019 Ski *ski |
505072019 |
12 999 р. |
||
|
2
|
2
505070980
Pont peint *bridge-paint
Includes 2 to 3; |
505070980 |
— | ||
|
4
|
4
860507900
Ens.lisse 4car.*kit-runner 4 car.blow mo
Includes 4 to 5; |
860507900 |
— | ||
|
5
|
5
233281414 Nut-flange elastic din.6926 |
233281414 |
2 320 р. |
||
|
6
|
6
234082410 Washer-flat din.9021b |
234082410 |
2 300 р. |
||
|
7
|
7
505070954
Coussinet *cushion
|
505070954 |
— | ||
| замена | |||||
|
7
|
7
505072690 Втулка |
505072690 |
1 613 р. |
||
|
8
|
8
505071304
Butee de ski *stopper-ski
|
505071304 |
— | ||
|
9
|
9
506133300 Entretoise *spacer |
506133300 |
2 805 р. |
||
|
10
|
10
230003044
Screw-hex.cap m10 x 130 iso.4014
|
230003044 |
— | ||
| замена | |||||
|
10
|
10
230100044 Screw-hex.cap iso.4017 |
230100044 |
1 755 р. |
||
|
11
|
11
234001410 Washer-flat din.125a |
234001410 |
2 000 р. |
||
|
12
|
12
233201414 Nut-flange elastic din.6926 |
233201414 |
2 510 р. |
||
|
13
|
13
505071232 Jambe ski usine*leg-ski mach. |
505071232 |
26 896 р. |
||
|
14
|
14
860510100
Bras inf.ass.d.*lower ars rh ass.
|
860510100 |
— | ||
| замена | |||||
|
14
|
14
860512500 Bras inf.ass.d.*lower ars rh ass. |
860512500 |
31 871 р. |
||
|
14
|
14
860510000
Bras inf.ass.g.*lower ars lh ass.
Includes 14 to 16; |
860510000 |
— | ||
| замена | |||||
|
14
|
14
860512400 Bras inf.ass.g.*lower ars lh ass.Includes 14 to 16; |
860512400 |
31 871 р. |
||
|
15
|
15
505071658
Joint rotule *ball joint
|
505071658 |
— | ||
| замены | |||||
|
15
|
15
505072048
Joint rotule *ball joint
|
505072048 |
— | ||
|
15
|
15
250100089 Ecrou m12 *nut m12 |
250100089 |
444 р. |
||
|
16
|
16
293370035 Circlip *circlip |
293370035 |
4 250 р. |
||
|
18
|
18
250000118 Screw-hex.cap with nylon patch550F; |
250000118 |
1 810 р. |
||
|
19
|
19
506095800 Bride *clamp550F; |
506095800 |
4 260 р. |
||
|
20
|
20
505070912 Coussinet stab.*bushing-torsion bar550F; |
505070912 |
1 222 р. |
||
|
20
|
20
505070664 Coussinet stab.*bushing-torsion bar550F; |
505070664 |
1 222 р. |
||
|
21
|
21
505070948 Stabilisateur p*stabilisator-p550F; |
505070948 |
23 543 р. |
||
|
22
|
22
505071039 Embout stabilis*sway-bar end550F; |
505071039 |
1 524 р. |
||
|
23
|
23
505071253 Bouchon *plug-end550F; |
505071253 |
397 р. |
||
|
24
|
24
293150103 Pop rivet 3/16 |
293150103 |
2 275 р. |
||
|
27
|
27
505071268
Demi couliss.dr*half-slider rh
550F; |
505071268 |
— | ||
|
27
|
27
505071269
Demi couliss.ga*half-slider lh
550F; |
505071269 |
— | ||
|
28
|
28
207152544 Screw-hex.cap din.933550F; |
207152544 |
1 080 р. |
||
|
29
|
29
391301700
Rondelle *washer
550F; |
391301700 |
— | ||
|
30
|
30
233251414 Nut-flange elastic din.6926550F; |
233251414 |
672 р. |
||
|
31
|
31
505071458
Amort. avant *shock-front
550F; |
505071458 |
— | ||
| замена | |||||
|
31
|
31
505071640 Amort. avant *shock-front550F; |
505071640 |
15 296 р. |
||
|
31
|
31
505071640 Amort. avant *shock-front380F, 550F Europe; |
505071640 |
15 296 р. |
||
|
32
|
32
505070401 Rondelle *washer |
505070401 |
4 870 р. |
||
|
33
|
33
505071264
Ressort peint *spring- painted
|
505071264 |
— | ||
|
34
|
34
503187500 Guide ressort *guide-spring |
503187500 |
1 230 р. |
||
|
35
|
35
503140600
Butee ressort *stopper-spring
|
503140600 |
— | ||
| замена | |||||
|
35
|
35
503191611
Butee ressort *stopper-spring
|
503191611 |
— | ||
|
36
|
36
207005544 Screw-hex.cap iso.4014 |
207005544 |
1 795 р. |
||
|
37
|
37
207006044 Screw-hex.cap iso.4014 |
207006044 |
1 330 р. |
||
|
38
|
38
503189564 Rondelle *washer |
503189564 |
890 р. |
||
|
39
|
39
233201414 Nut-flange elastic din.6926 |
233201414 |
2 510 р. |
||
|
40
|
40
505071727
Bras sup.peint *arm-upper paint
|
505071727 |
— | ||
|
41
|
41
505071679
Joint rotule su*joint-ball upper
|
505071679 |
— | ||
| замена | |||||
|
41
|
41
505071863
Joint rotule su*joint-ball upper
|
505071863 |
— | ||
|
42
|
42
250000047 Nut-stop elastic din.985 |
250000047 |
306 р. |
||
|
43
|
43
234021410 Washer-flat din.125a |
234021410 |
1 190 р. |
||
|
44
|
44
503189276 Rondelle *washer |
503189276 |
13 225 р. |
||
|
45
|
45
211400017 Goupille fendue*pin-cotter |
211400017 |
2 550 р. |
||
|
46
|
46
232221414 Nut-hex.castle din.935 |
232221414 |
2 560 р. |
||
|
47
|
47
250000216
Cone screw m10 x 75
|
250000216 |
— | ||
|
48
|
48
250000218 Screw-hex.cap m10 x 75 iso.876 |
250000218 |
1 337 р. |
||
|
49
|
49
250100073
Nut-flange elastic din.6926
|
250100073 |
— | ||
|
50
|
50
505070567 Douille *bushing |
505070567 |
1 834 р. |
||
|
51
|
51
505070566 Coussinet *bushing |
505070566 |
287 р. |
||
|
52
|
52
232501416 Nut-stop elastic din.985 |
232501416 |
1 200 р. |
||
|
53
|
53
503189564 Rondelle *washer |
503189564 |
890 р. |
||
|
54
|
54
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
