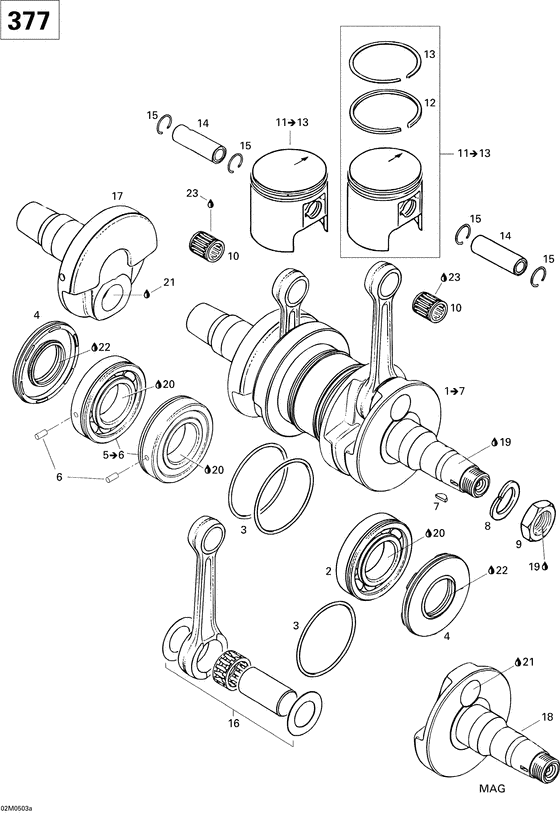

01- crankshaft and pistons 377 для Bombardier GTX
- Год
- 2005
- Регион продаж
- General
- Модель
- GTX 380F
Запутались с подбором запчастей?
Запутались с подбором запчастей?
| Наименование | OEM номер | Цена | |||
|---|---|---|---|---|---|
|
1
|
1
420889630
Vilebrequin *crankshaft
Includes 1 to 7; |
420889630 |
— | ||
|
2
|
2
420832570 Roulement bille*ball bearing |
420832570 |
6 090 р. |
||
|
3
|
3
293300022 Joint torique *o-ring |
293300022 |
8 840 р. |
||
|
4
|
4
420831952 Anneau etanche *seal-oil |
420831952 |
2 429 р. |
||
|
5
|
5
420832574 Roulement bille*ball bearingIncludes 5 to 6; |
420832574 |
4 966 р. |
||
|
6
|
6
420929972 Goupille ressor*pin-roll |
420929972 |
4 250 р. |
||
|
7
|
7
420246055 Clavette *key-woodruff |
420246055 |
3 910 р. |
||
|
8
|
8
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
3 060 р. |
||
|
9
|
9
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
10
|
10
420932904 Roul.aiguille *needle bearing |
420932904 |
2 197 р. |
||
|
11
|
11
420890060 Piston 61.93 *piston 61.93Includes 11 to 13; |
420890060 |
18 356 р. |
||
|
11
|
11
420890061 Piston 62.18 *piston 62.18Includes 11 to 13; |
420890061 |
18 356 р. |
||
|
11
|
11
420890062
Piston 62.43 *piston 62.43
Includes 11 to 13; |
420890062 |
— | ||
|
12
|
12
420915896 Segment r 62.25*ring-r 62.25 |
420915896 |
3 948 р. |
||
|
12
|
12
420915897 Segment r 62.5 *ring-r 62.5 |
420915897 |
3 564 р. |
||
|
12
|
12
420915895 Segment r 62.00*ring-r 62.00 |
420915895 |
3 311 р. |
||
|
13
|
13
420215215 Segment semi-tr*ring-semi trap |
420215215 |
6 371 р. |
||
|
13
|
13
420215216 Segment semi-tr*ring-semi trap |
420215216 |
7 261 р. |
||
|
13
|
13
420215217 Segment semi-tr*ring-semi trap |
420215217 |
7 261 р. |
||
|
14
|
14
420916260 Axe de piston *pin-gudgeon |
420916260 |
6 622 р. |
||
|
15
|
15
420945735 Circlip piston *circlip-piston |
420945735 |
от 400 р. |
||
|
16
|
16
420889634 Ens.tige rep. *kit-rod repair |
420889634 |
30 086 р. |
||
|
17
|
17
420818204
Vilebrequin pto*crankshaft-pto
|
420818204 |
— | ||
|
18
|
18
420819010 Demi-vileb.mag.*half-crank mag |
420819010 |
34 421 р. |
||
|
19
|
19
293800060 Loctite 243 *loctite-243 |
293800060 |
3 897 р. |
||
|
20
|
20
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
5 098 р. |
||
|
21
|
21
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
22
|
22
413707000 Dow corning 111*dow corning 111 |
413707000 |
10 846 р. |
||
|
23
|
23
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| замена | |||||
|
23
|
23
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
1 955 р. |
||
