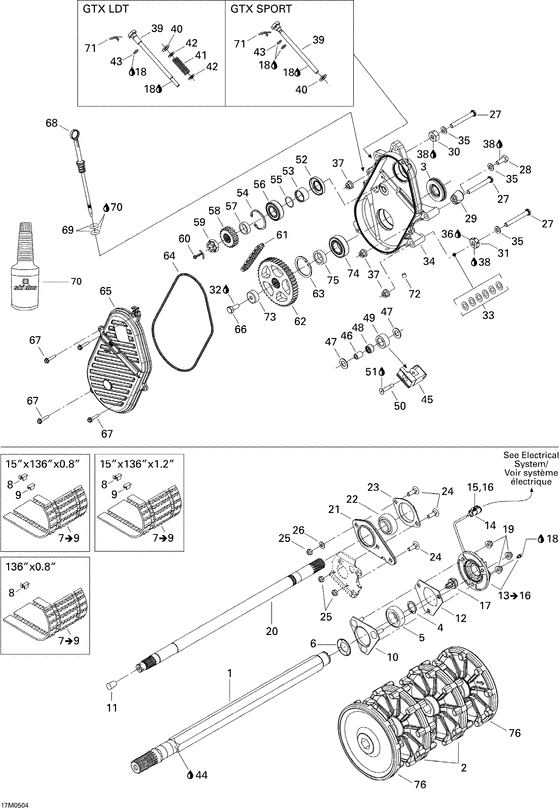

05- drive system для Bombardier GTX
- Год
- 2005
- Регион продаж
- General
- Модель
- GTX 600 HO
Запутались с подбором запчастей?
Запутались с подбором запчастей?
Наименование | OEM номер | Цена | |||
---|---|---|---|---|---|
1
|
1
501027400 Arbre entr.pein*axle-drive paint |
501027400 |
35 421 р. |
||
2
|
2
504152198 Barbotin 10d *sprocket 10th |
504152198 |
7 738 р. |
||
3
|
3
504151918 Anneau etanche *oil seal ass y |
504151918 |
2 811 р. |
||
4
|
4
371910200 Circlip *circlip |
371910200 |
1 220 р. |
||
5
|
5
504152009
Roulement bille*ball bearing
|
504152009 |
— | ||
замена | |||||
5
|
5
293350060 Roulement bille*ball bearing |
293350060 |
4 336 р. |
||
6
|
6
501017400 Prot.roulement *bearing protector |
501017400 |
1 050 р. |
||
7
|
7
504152455 Chenille 15"x136"x0.88" *track-assyIncludes 7 to 9 / GTX LTD 800 H.O.; |
504152455 |
98 528 р. |
||
7
|
7
504152488
Chenille *track-assy 15"x136"x1.250
Includes 7 to 9 / GTX LTD 800 H.O. (Europe); |
504152488 |
— | ||
замена | |||||
7
|
7
504152731 Chenille *track-assy.Includes 7 to 9 / GTX LTD 800 H.O. (Europe); |
504152731 |
160 814 р. |
||
8
|
8
504152410
Guide *clip
|
504152410 |
— | ||
9
|
9
500003300
Agrafe *cleat
|
500003300 |
— | ||
10
|
10
504151860 Logement roul. *housing-bear.weld. |
504151860 |
1 402 р. |
||
11
|
11
414784800 Bouchon liege *cork |
414784800 |
346 р. |
||
12
|
12
501025000 Flasque *flange |
501025000 |
583 р. |
||
13
|
13
504152345 Capteur *sensorIncludes 13 to 16; |
504152345 |
7 853 р. |
||
14
|
14
515175671 Logement femel.*housing-female |
515175671 |
1 322 р. |
||
15
|
15
278000632 Cosse femelle *terminal-femal |
278000632 |
2 370 р. |
||
16
|
16
515175676 Verrou femelle *lock-female |
515175676 |
598 р. |
||
17
|
17
504152040 Adaptateur magn*adaptor-magnetic |
504152040 |
6 178 р. |
||
18
|
18
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
19
|
19
233281414 Nut-flange elastic din.6926 |
233281414 |
215 р. |
||
20
|
20
504152018 Arbre renvoi *shaft-counter |
504152018 |
61 342 р. |
||
21
|
21
504151968 Entretoise *spacer |
504151968 |
1 756 р. |
||
22
|
22
504152026
Roulement bille*ball bearing
|
504152026 |
— | ||
замена | |||||
22
|
22
504152535
Roulement bille*ball bearing
|
504152535 |
— | ||
23
|
23
501026900
Flasque *flange
|
501026900 |
— | ||
24
|
24
207782544 Bolt-carriage din.603 |
207782544 |
1 125 р. |
||
25
|
25
232581414 Nut-stop elastic din.985 |
232581414 |
660 р. |
||
26
|
26
234081410 Washer-flat din.125a |
234081410 |
960 р. |
||
27
|
27
250000151 Screw-hex.cap iso.4017 |
250000151 |
2 440 р. |
||
28
|
28
207102544 Screw-hex.cap iso.4017 |
207102544 |
2 250 р. |
||
29
|
29
504152252
Entretoise *spacer
|
504152252 |
— | ||
30
|
30
504083800 Entretoise *spacer |
504083800 |
1 050 р. |
||
31
|
31
504152237 Entretoise *spacer |
504152237 |
1 050 р. |
||
32
|
32
293800005 Loctite 271 *loctite-271 |
293800005 |
3 046 р. |
||
33
|
33
504073700 Rondelle *washer |
504073700 |
2 325 р. |
||
34
|
34
504152086
Carter chaine u*case-chain mach
GTX LTD; |
504152086 |
— | ||
35
|
35
503175800 Rondelle *washer |
503175800 |
3 560 р. |
||
36
|
36
293800070
Loct.anti grip.*loct-antiseize
|
293800070 |
— | ||
37
|
37
233201414 Nut-flange elastic din.6926 |
233201414 |
2 250 р. |
||
38
|
38
293800060 Loctite 243 *loctite-243 |
293800060 |
3 713 р. |
||
39
|
39
504151946 Vis de reglage *screw adjustingGTX LTD; |
504151946 |
13 368 р. |
||
40
|
40
503189148 Rondelle *washerGTX LTD; |
503189148 |
1 535 р. |
||
41
|
41
504151945 Ressort *springGTX LTD; |
504151945 |
805 р. |
||
42
|
42
503125900 Rondelle trempe*washer-hardGTX LTD; |
503125900 |
4 480 р. |
||
43
|
43
504151954 Joint torique *o-ringGTX LTD; |
504151954 |
1 475 р. |
||
44
|
44
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
45
|
45
504151940 Tendeur chaine *chain-tens.mach.GTX LTD; |
504151940 |
5 273 р. |
||
46
|
46
504080200 Entretoise *spacer |
504080200 |
1 284 р. |
||
47
|
47
504080300 Rondelle *washer |
504080300 |
6 980 р. |
||
48
|
48
405403000 Roul.aiguille *needle bearing |
405403000 |
2 927 р. |
||
49
|
49
414531300 Rouleau *roller |
414531300 |
6 213 р. |
||
50
|
50
732601144 Болт |
732601144 |
205 р. |
||
51
|
51
293800005 Loctite 271 *loctite-271 |
293800005 |
3 046 р. |
||
52
|
52
415049300 Joint etanche *oil seal |
415049300 |
1 638 р. |
||
53
|
53
507031500 Entretoise *spacer |
507031500 |
1 519 р. |
||
54
|
54
371901700 Circlip int. *circlip-int. |
371901700 |
6 710 р. |
||
55
|
55
414876700 Joint torique *o-ring |
414876700 |
1 270 р. |
||
56
|
56
504152006
Roulement bille*ball bearing
|
504152006 |
— | ||
замена | |||||
56
|
56
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
1 478 р. |
||
57
|
57
504147200 Cale epaisseur *shim |
504147200 |
3 515 р. |
||
58
|
58
504091000 Pignon 23d.larg*sprock.-23th lGTX LTD; |
504091000 |
5 626 р. |
||
59
|
59
250000012 Nut-hex.castle m20 x 1.5 |
250000012 |
805 р. |
||
60
|
60
371006300 Goupille fendue*pin-cotter |
371006300 |
820 р. |
||
61
|
61
504151856 Chaine large *chain-driv.l.GTX LTD; |
504151856 |
14 657 р. |
||
62
|
62
504152238
Roue dentee 45d*sprocket 45th
GTX LTD; |
504152238 |
— | ||
63
|
63
415064300 Circlip int. *circlip-int. |
415064300 |
573 р. |
||
64
|
64
415046400 Joint torique *o-ring |
415046400 |
934 р. |
||
65
|
65
504152471 Couvercle moule*cover-casting |
504152471 |
21 110 р. |
||
66
|
66
207102544 Screw-hex.cap iso.4017 |
207102544 |
2 250 р. |
||
67
|
67
210263080 Screw-forming hex.hd.fl.gm6174m |
210263080 |
2 250 р. |
||
68
|
68
504151703 Bouchon remp.as*cap-filler assy. |
504151703 |
1 638 р. |
||
69
|
69
414969400 Joint torique *o-ring |
414969400 |
9 340 р. |
||
70
|
70
413803300
Huile chaine *oil-chain
|
413803300 |
— | ||
71
|
71
414575600 Goup.surete *pin-hair |
414575600 |
1 125 р. |
||
72
|
72
504151921 Plug 1/8-27 n.p.t. 3/4 taper |
504151921 |
497 р. |
||
73
|
73
504152460 Capuchon *cap |
504152460 |
1 284 р. |
||
74
|
74
504152005 Roulement bille*ball bearing |
504152005 |
4 803 р. |
||
75
|
75
504152058
Cale epaisseur *shim
|
504152058 |
— | ||
замена | |||||
75
|
75
504152649 Cale epaisseur *shim |
504152649 |
2 459 р. |
||
76
|
76
504152199 Demi-barbot.10 *half sproc.10 |
504152199 |
5 626 р. |
